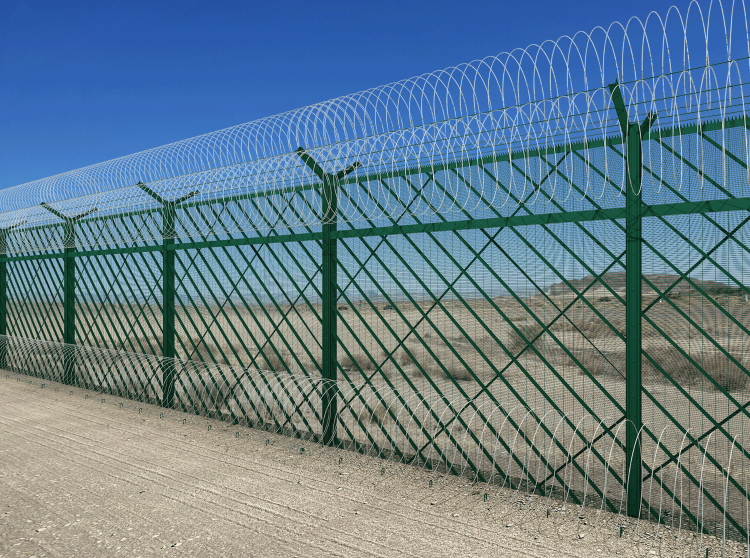

Rampart Armor – Delay-Rated Welded Wire System

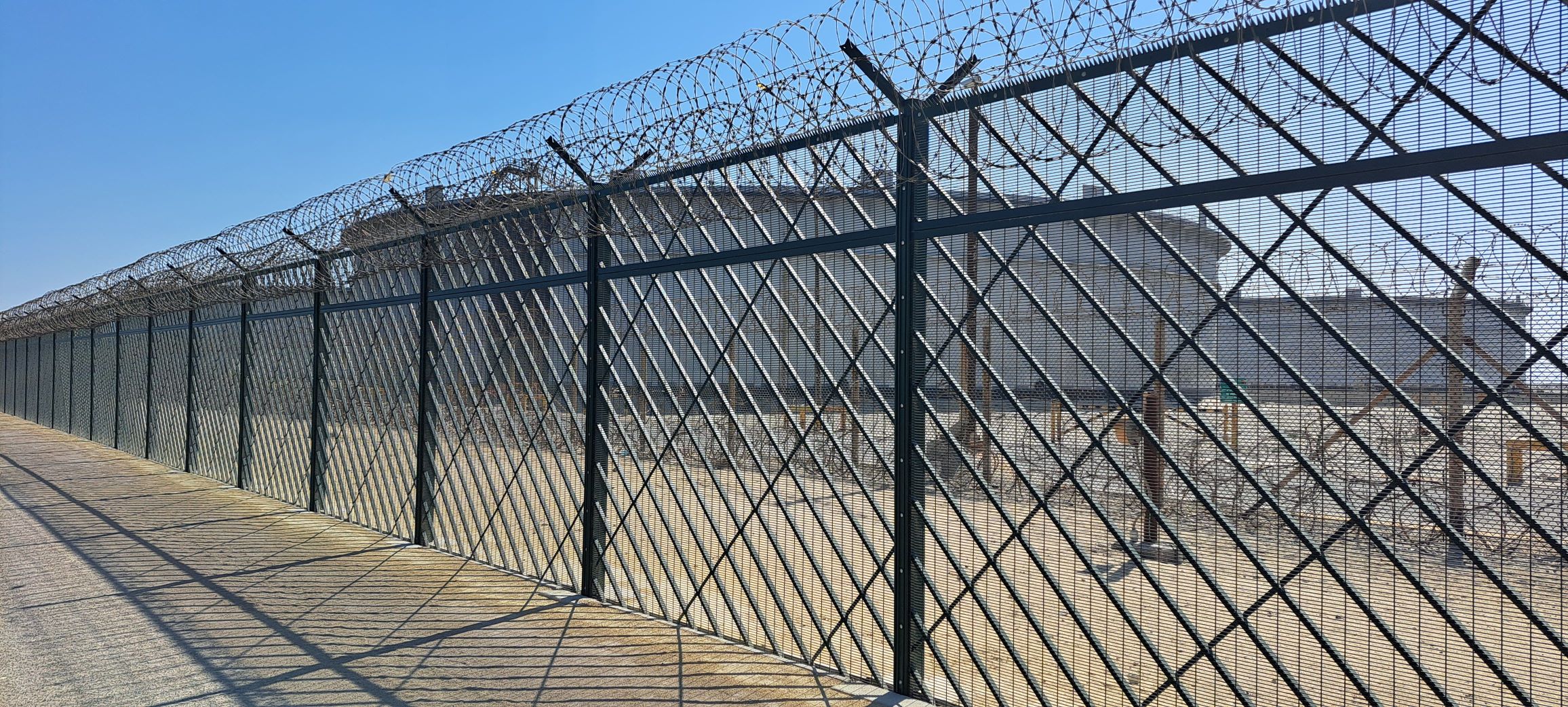

RAMPART Armor panels deliver the highest level of delay-rated security. Independently tested to ASTM F2781 standards, this system resists aggressive intrusion attempts with reinforced anti-climb apertures, and heavy-duty steel construction. Guaranteed delay times of 6+ minutes (aggressive tools) and 30+ minutes (medium tools) provide critical response time for high-risk facilities.

Recommended Applications

  • Substations & critical power facilities
  • Airports
  • Prisons & correctional facilities
  • Border crossings
  • Data centers & other high-risk sites

Technical Specifications

Technical Data Rampart Armor Specification

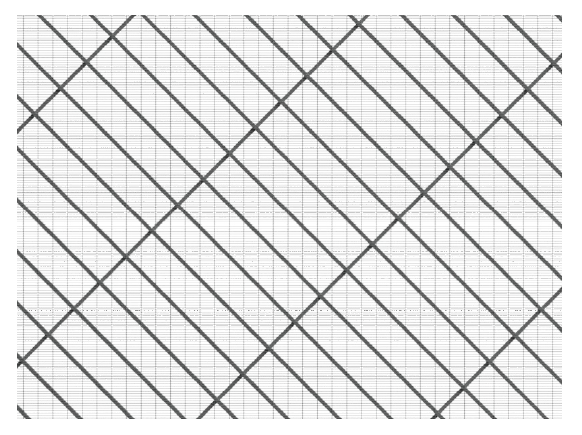

Mesh Opening 3" x 0.5" (76.2 mm x 12.7 mm)
Wire Diameter Ø 0.118" (3 mm) – per ASTM A641
Panel Dimensions Top Panel: 120.3" x 21.5"
Bottom Panel: 120.3" x 87"
System: Height 11 ft (108" panels + 140" posts with 30" embedment
Material Carbon Steel
Finish Galvanized; Powder Coat

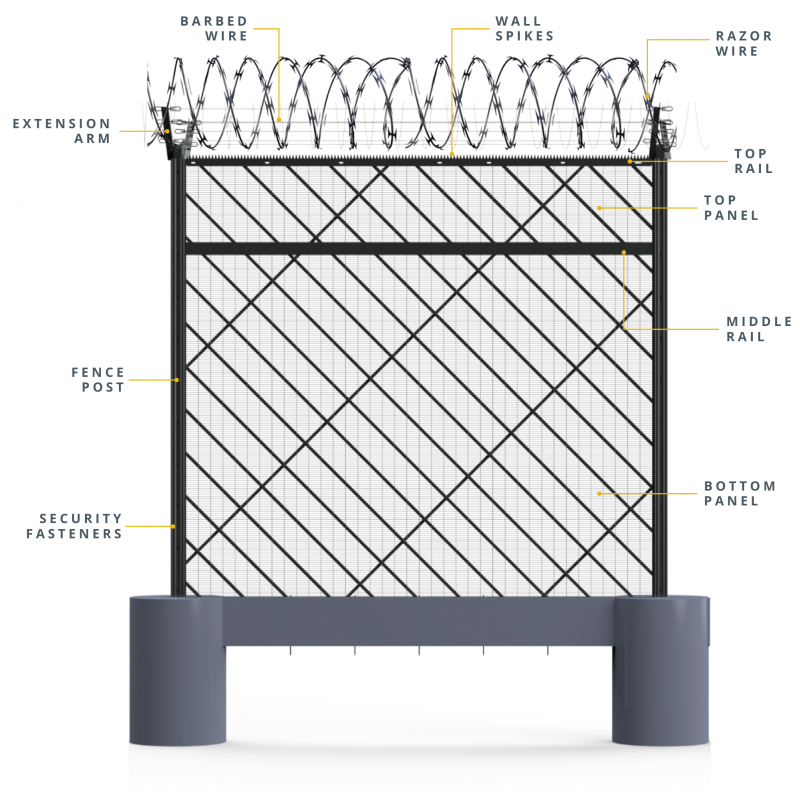

Hardware

Depending on the project requirements, Wallace Perimeter Security offers a variety of brackets and posts to fit every requirement. Please  contact us if you need any assistance on picking the best option for your project.

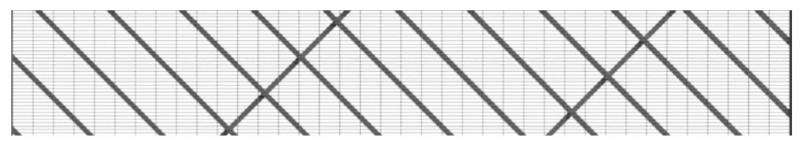

Top Panel

  • Panel Dimensions: 120.3" x 21.5"
  • Wire Dia.: Ø0.118" (Tolerances are in accordance with ASTM A641.)
  • Mesh Size: 3" x 0.5" (Tolerances are in accordance with ASTM F2453.)
  • MOC: Carbon Steel
  • Finish: Hot Dip Galvanized, complying to ASTM A123 + TPC

Bottom Panel

  • Panel Dimensions: 120.3" x 87"
  • Wire Dia.: Ø0.118" (Tolerances are in accordance with ASTM A641.)
  • Mesh Size: 3" x 0.5" (Tolerances are in accordance with ASTM F2453.)
  • MOC: Carbon Steel
  • Finish: Hot Dip Galvanized, complying to ASTM A123 + TPC

Top Middle Rails

  • Carbon steel, galvanized + powder coat

Posts

  • Rectangular steel, galvanized + powder coat
  • Dimensions: 140” high, 4.72" x 2.36" x 0.108" THK
  • MOC: Carbon Steel
  • Finish: Hot Dip Galvanized, complying to ASTM A123 + TPC

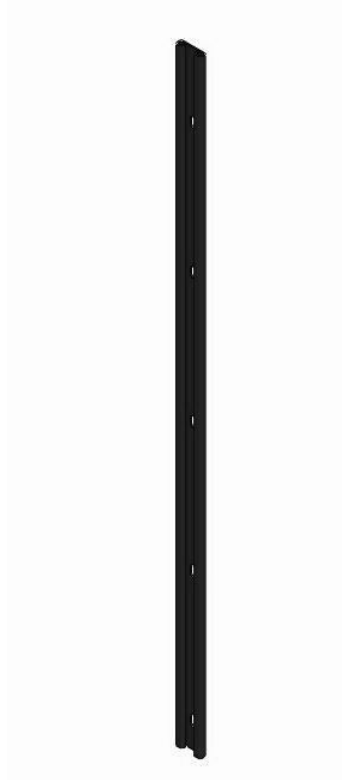

Profile Cover Plate

  • Size: 3.34" x 0.49" x 0.11" THK
  • MOC: Carbon Steel
  • Finish: Hot Dip Galvanized, complying to ASTM A123 + TPC

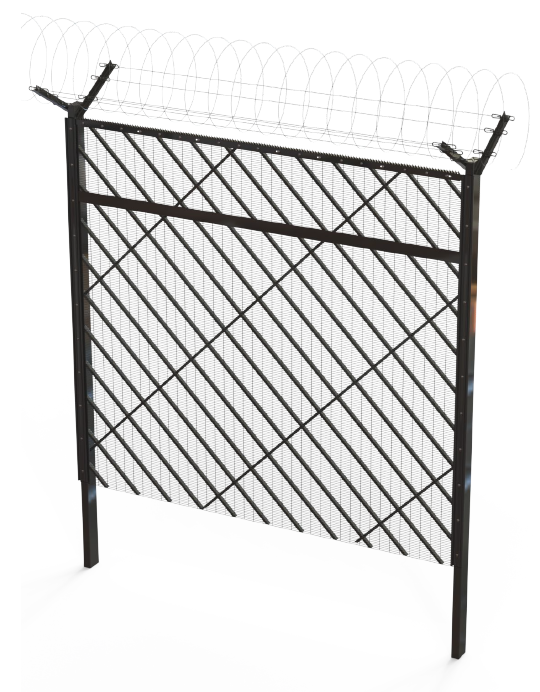

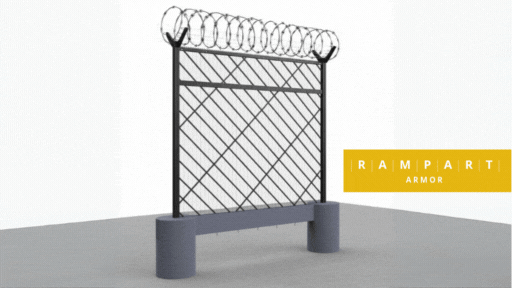

System

  • System Height: 11'
  • Panel Height: 108"
  • Post Height: 140"
  • Embedment Depth: 30"

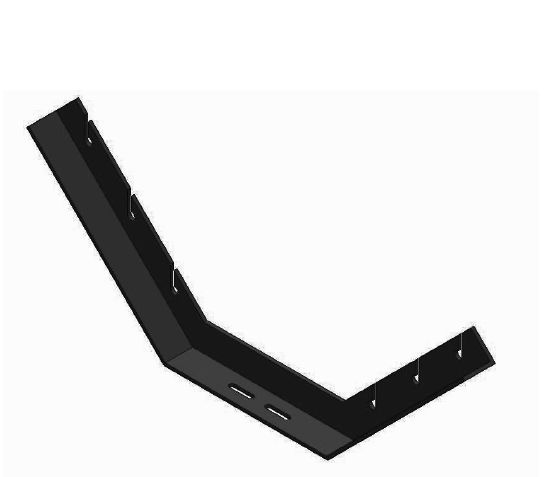

Extension Arms

  • For barbed/razor wire toppings
  • Size: Made from equal angle 1.57" x 1.57" x 0.16" THK
  • MOC: Carbon Steel
  • Finish: Hot Dip Galvanized, complying to ASTM A123 + TPC

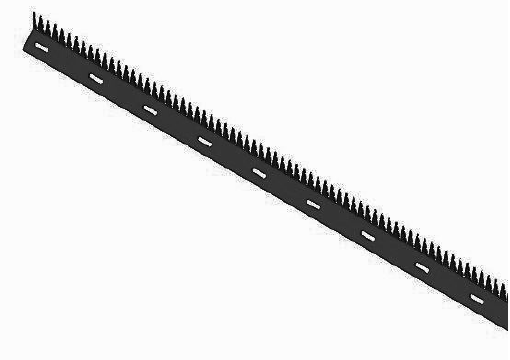

Wall Spikes

  • Anti-climb deterrent
  • Size: Made from 0.07" THK sheet
  • MOC: Carbon Steel
  • Finish: Hot Dip Galvanized, complying to ASTM A123 + TPC

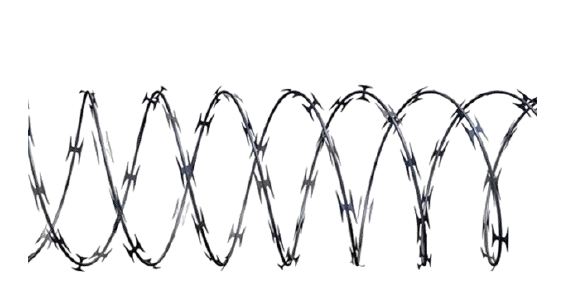

Razor Wire

  • Optional topping (per ASTM F1910/F1911)

Barbed Wire

  • Double-strand galvanized (ASTM A121)
  • Line Wire Dia.: Ø0.1"
  • Barbed Wire Dia.: Ø0.08"(Tolerances are in accordance with ASTM A641.)
  • Pitch: 5"
  • Strands: Double
  • Finish: Hot Dip Galvanized, complying to ASTM A123

Security Fasteners

  • Tamper-resistant fittings
