Rampart 284 - Double Wire
Rampart 284 - Double Wire Fencing
RAMPART 284 panels are a great entry-level, double wire fence system and the perfect solution to address the drawbacks associated with chain-link fencing.The strong and rigid Rampart 284 panel offers a stable as well as cost-effective solution for absolute security.
- Retrofit existing chain-link applications that require a more enhanced appearance and security

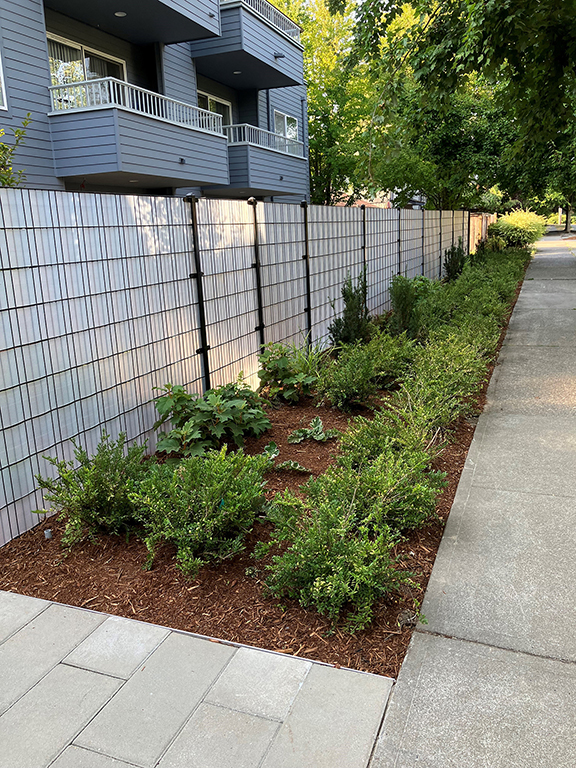

- Privacy Inserts - Durable and light weight strips can be inserted into the mesh to provide a visual and sound barrier.
For more information on Privacy Inserts for welded wire, please click here.
|Technical Data||Rampart 284 Specification|
|Mesh Opening||2" x 8" (50 mm x 200 mm)|
|Gauge of Horizontal Wire||2 x 4 GA (6 mm)
|Gauge of Vertical Wire||1 x 6 GA (5 mm)|
|Standard Height||4', 6', 8' (1230 mm, 1830 mm, 2430 mm)|
|Standard Length||8'2" (2508 mm)|
|Finish||Galvanized; Powder Coat|
Depending on the project requirements, Wallace offers a variety of brackets and posts to fit every requirement. Please contact us if you need any assistance on selecting the best option for your project.
- 2 3/8" Round Post
- 2" x 2" Square Post
3" x 3" Square Post
Round Post Bracket: Standard for 2 3/8" round post.
- Rampart Welded Wire - Brochure (PDF 0.3MB)
- Rampart 284 - Panel Drawing (PDF 0.1MB)
- Rampart 284 - Round Post and Bracket Drawing (0.1MB)
- Rampart 284 - 2" Square Post and Bracket Drawing (0.1MB)
- Rampart 284 - 3" Square Post and Bracket Drawing (0.1MB)
- Rampart 284 - Panel CAD Drawing 1 of 1 (DWG 0.6MB)
- Rampart 284 - Round Post and Bracket CAD Drawing 1 of 1 (DWG 0.3MB)
- Rampart 284 - 2" Square Post and Bracket CAD Drawing 1 of 1 (DWG 0.2MB)
- Rampart 284 - 3" Square Post and Bracket CAD Drawing 1 of 1 (DWG 0.2MB)
Rampart Welded Wire Videos
Secure your property in a fraction of the time with Wallace Perimeter Security's quick-hang caps. Each line post cap is equipped with two small hooks that allow welded wire panels to be hung with ease by a single installer. Currently available for 2 3/8" round posts only.
